Proposed: Target Deployment Architecture

Status: proposed. Not the deployment you have.

Everything on this page describes an end state the platform is growing towards. The architecture running today is Deploy on Oracle Cloud: one Compute instance, one managed PostgreSQL, one Load Balancer. Where this page and that page disagree, that page is the truth. Nothing here is a prerequisite for anything, and no step below should be attempted as part of a rollout.

The reason for publishing it as a document rather than leaving it in a slide is that it is the shared target: it decides which components the platform team provisions, which ones the software has to grow, and — the part that is easy to lose — which of them nobody has built yet.

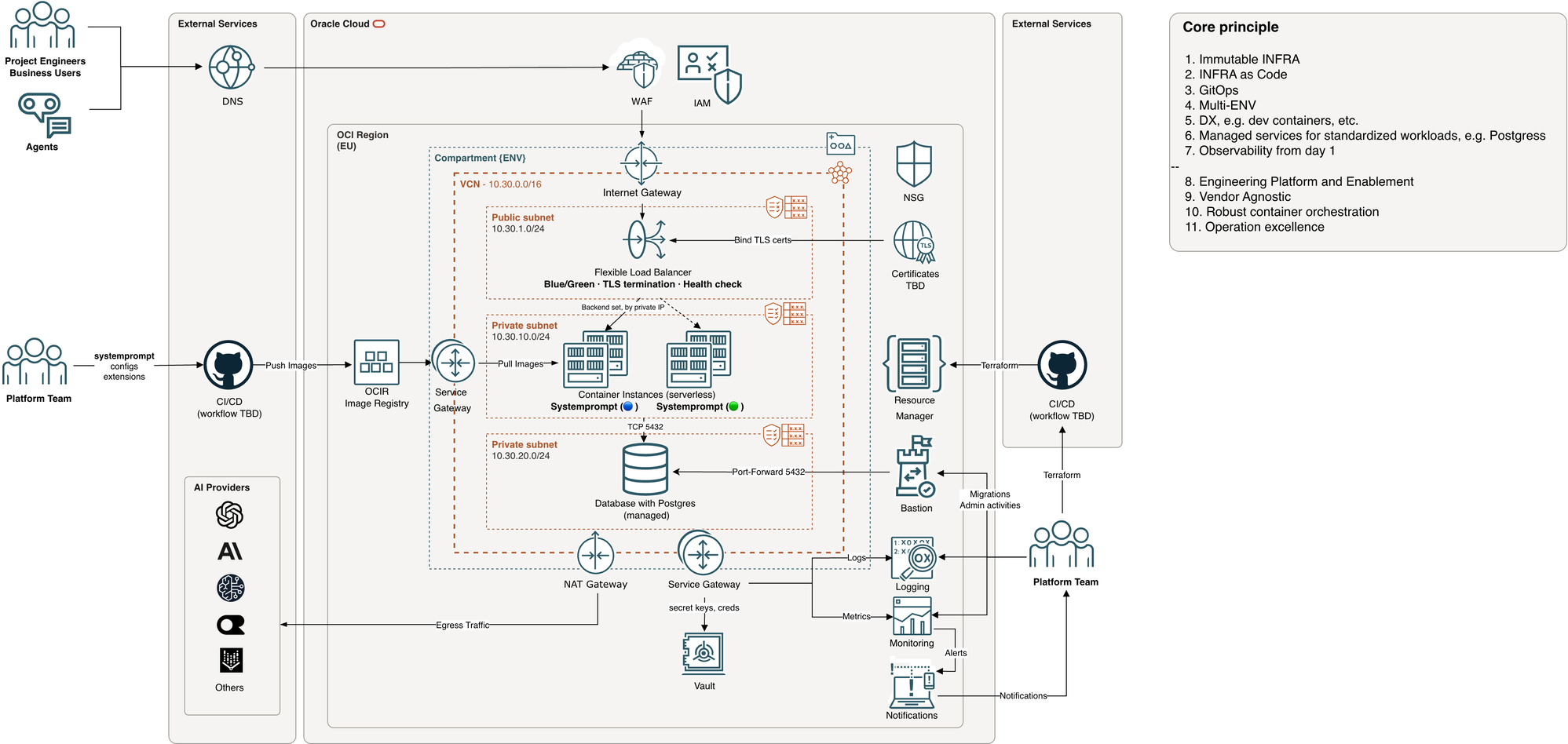

The proposed architecture

The principles it is built on are the platform team's: immutable infrastructure, infrastructure as code, GitOps, multiple environments, managed services for standardised workloads, observability from day one, and vendor agnosticism.

Where the value sits

Both diagrams describe the same deployment. They disagree only about what to measure. Theirs is a topology: its axes are subnets, ports and provisioned resources, and on those axes the gateway is one container among twenty-odd boxes. This one is the same system projected by what makes decisions, and on those axes the proportions invert.

The layer below is provisioned once. The layer above decides on every call. That is the whole argument, and it is why the container looks small on a topology diagram without being small.

The source is docs/architecture/value-architecture.drawio in this repository — an editable draw.io file, so the platform team can open it beside their own and change it. Both it and the SVG above are generated from scripts/make-value-architecture.py; edit the script, not the outputs.

Where the boundary is drawn

Almost every component in that diagram belongs to the platform team, not to the application. The gateway is the pair of container instances and a schema inside the managed PostgreSQL. That is deliberate: vendor agnosticism is only real if the software does not know which cloud it is on.

Component	Owner	Notes
DNS, WAF, IAM, Internet Gateway	Platform team	The application has no configuration for any of them
Load Balancer, TLS termination, certificates	Platform team	The gateway serves plain HTTP on its port and expects TLS in front
VCN, subnets, NSGs, security lists	Platform team
NAT Gateway, Service Gateway	Platform team	The NAT is the single egress path to model providers — one place to allowlist
OCIR, Resource Manager, Terraform	Platform team	The application ships as an image; it does not build on the target
Managed PostgreSQL (the instance)	Platform team
Vault, Bastion, Logging, Monitoring, Notifications	Platform team
Container image, stateless	Platform (this software)	One image, pinned by tag
Database schema and migrations	Platform (this software)	Versioned with the release, applied by its CLI
/livez, /readyz, metrics port	Platform (this software)	What the load balancer and monitoring consume
Outbound calls to model providers	Platform (this software)	Constrained in-process as well as at the NAT

Six seams are where the two sides actually meet, and they are the only integration points worth specifying in the Terraform:

1. Config and secrets. The node boots from a rendered profile directory plus a secrets source.
2. Egress. All provider traffic leaves through the NAT Gateway. The gateway additionally validates every outbound URL that originated from a user or an agent, so the constraint holds on both sides of the boundary.
3. Database access. Two distinct paths: the application to PostgreSQL on 5432 from the private subnet, and the bastion to 5432 for migrations and admin work. Migrations run as a one-shot on the bastion path or as a pre-deploy job — never as a side effect of application start once more than one replica exists.
4. Blue/green with two live replicas. Two container instances in one backend set requires replica-safe job scheduling and shared session state.
5. Identity, two planes. OCI IAM authenticates the platform team to the cloud. It does not authenticate end users to the application — that is Dynapps SSO and the gateway's own authorization model. Do not assume IAM covers application access.
6. Health and observability. Structured JSON logs on stdout (no agent required), a metrics port separate from the API port, and distinct liveness and readiness probes.

Current versus proposed, component by component

Capability	Today	Proposed	Gap
Compute	One container instance	Two, blue/green behind one backend set	Supported; not yet run
Scheduled jobs across replicas	Instance-scoped claims, node and cluster policies	Same	None — already built
Session and identity state	In PostgreSQL	Same	None — already built
Liveness / readiness / metrics	/livez, /readyz, separate metrics port	Same	None — already built
Load shedding	server.max_in_flight per process: 503 + Retry-After, /readyz reports saturated	Same	None — already built
Node roles	server.role: all, gateway or admin; gateway nodes run no background work	Gateway and admin tiers scaled separately	None — already built
Schema migrations across replicas	One process migrates; others boot with --skip-migrate / database.migrate_on_boot: false and refuse a behind schema	Same	None — already built
Read-only root filesystem	Every written directory declared and probed at boot; scratch under storage/data	Same	None — already built
Provider egress	Single NAT path, in-process outbound URL validation	Same	None — already built
Database	One managed primary, DR replicas	Same; per-region replica reads still off	Deliberate — replica lag breaks read-after-write
Secrets	Rendered file, or environment	OCI Vault, with rotation	Gap 1
Uploaded and generated files	Local directory, a shared mount, or a Google Cloud Storage bucket (storage.backend: gcs)	Object storage	Gap 2 — closed for GCS; no OCI Object Storage or S3 backend
Generated static content	Rendered to node-local disk on every node	Rendered once to shared storage	Gap 3
Locally spawned MCP processes	Registered per instance id, claimed under a database lock; liveness still by PID	Scoped per instance	Gap 4 — boot race closed; PID liveness open
Database TLS	Encrypted (sslmode=require)	Certificate verified against a CA	Minor, open

The four gaps, precisely

These are seams that exist in the code with drivers that have not been written. None of them is architectural rework, and none of them is reached by a single-node deployment.

Gap 1 — Secrets have no Vault provider. The secrets source resolves to a file or the environment, once, at boot, into process memory. A Vault provider is therefore two pieces of work, not one: the fetch driver, and — if leases and rotation are wanted rather than read-once-hold-until-restart — a renewal path. Worth deciding up front which of the two is being bought. Until then the Vault box in the diagram is satisfied operationally: the secret is stored in Vault and placed on the node by the deployment, which is how Deploy on Oracle Cloud does it today.

Gap 2 — File storage on object storage: closed for Google Cloud Storage. File storage sits behind a vendor-agnostic interface, which now has two backends: a local directory, and Google Cloud Storage (storage: {backend: gcs, bucket, prefix?, public_read?, credentials?}, with credentials either workload_identity or a service-account key held as a secret). Replicas on GCP share one bucket and need no shared mount. On OCI the gap remains: an OCI Object Storage (or S3-compatible) backend behind the same interface is not written. The gateway journal and exports stay node-local by design.

Gap 3 — Generated static content is written to node-local disk. The content pipeline renders HTML, sitemaps and feeds to a directory that is then served. With two replicas, whichever one ran the job has the fresh content and the other serves stale, unless that directory is the same shared mount. The storage backend covers uploads and generated images, not this directory, so gap 3 is still open.

Gap 4 — Locally spawned processes are not scoped per node. MCP servers and orchestrated agent processes started on a node are recorded in the shared database by raw process id, with liveness checked by signalling that id. On one node that is correct. On two, one node can read a row written by another and judge liveness against — or terminate — an unrelated local process holding the same id. The blast radius is bounded (remote MCP servers over HTTP are unaffected). The boot-time half is fixed: each replica now claims its instance id under a database advisory lock before reconciling its MCP rows, refuses to boot when that id is already live, and the dead-instance reaper skips claimed ids, so multi-node boots no longer need to be serialised. PID liveness checks across nodes remain the open half.

The staged path

Deliberately incremental. Every component in the diagram is also a failure mode somebody has to be able to diagnose at three in the morning; adding them one at a time means you always know which one broke.

1. Now — one region, one node. Managed PostgreSQL, load balancer with TLS, secrets injected, logs and metrics wired. Deployable in an afternoon, reversible in a minute. Reaches none of the four gaps.
2. Next — Vault-backed secrets. Closes gap 1, the only one with a security dimension.
3. Then — object storage. Gap 2 is closed on GCS; OCI still needs its backend, and gap 3 (rendered static content) needs its own fix. Both are the precondition for more than one replica serving files or content.
4. Then — blue/green with two replicas. Needs gap 4 closed first.
5. Then — WAF, multi-AZ, and whatever region story the business needs.

Each stage is documented here as it is actually run, not as it is planned. A line moves out of this page and into Deploy on Oracle Cloud when it has been proven on a real instance — that is the only thing that distinguishes the two pages.
